Step drives

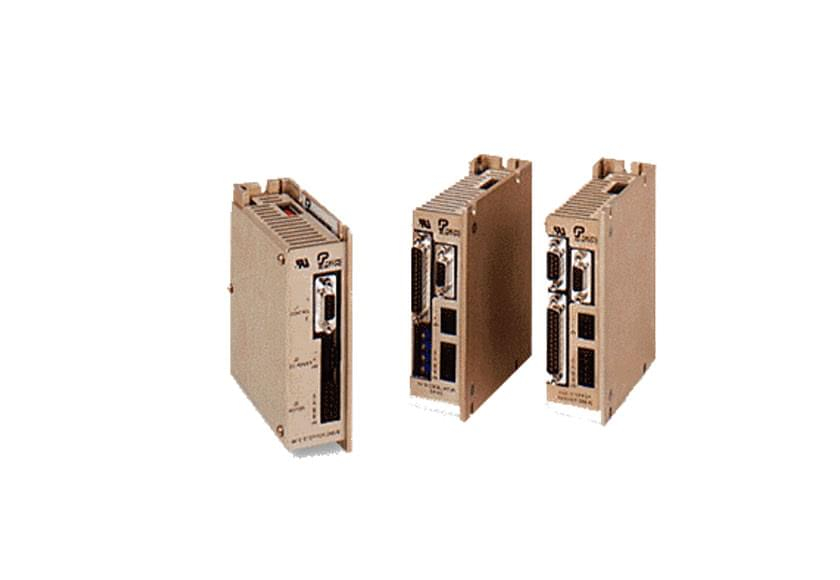

The Pacific Scientific 6400 series high performance micro stepping drives are modular to support a broad range of requirements. These drives offer excellent value for low voltage DC input-powered applications. The 6410 model has step and direction inputs. The 6415 model has the addition of an oscillator allowing a +/- 10 VDC input command for speed control.

  • Input voltage is from 24 to 75 VDC for a broad range of power sources.
  • Output current is selectable from 0.625 to 7.1 amps for motors up to size 42. Microstepping resolution is selectable via DIP switches up to 51,200 steps per revolution.
  • Four built-in potentiometers adjust acceleration, deceleration, low speed, and run speed settings.
  • Patented Digital Electronic Damping™ reduces instability at mid-speed ranges.

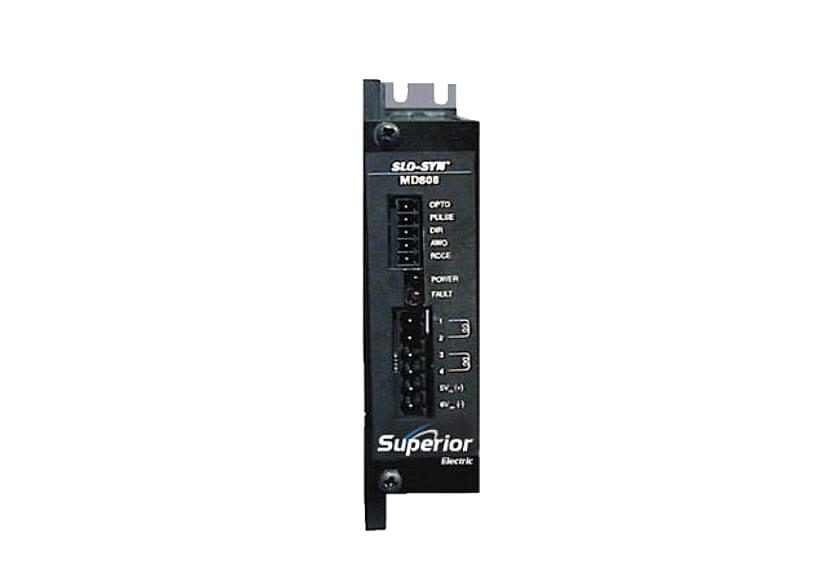

  • Superior Electric series MD808 legacy stepper drive
  • Kollmorgen series 6400 Pacific Scientific stepper drives
